Feature

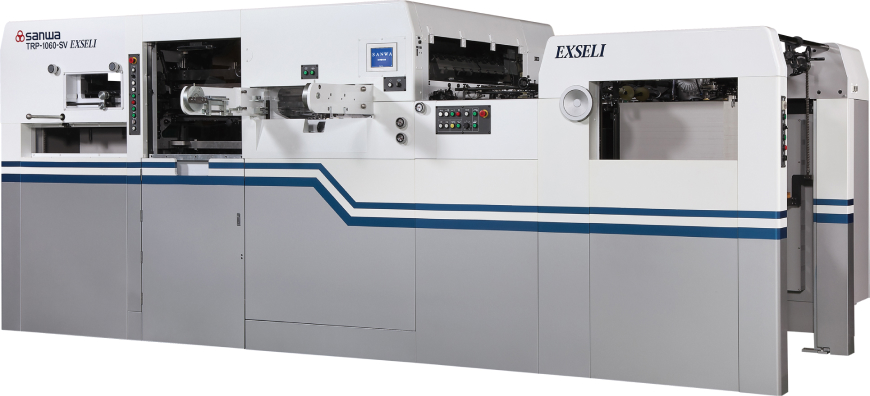

New release with a stylish high-end machine evolved from AXIA series, 9,000 sheets per an hour for the first time on our series

Stable sheet delivery by “ SV EXSELI “ original index system
High speed operation by a new development on our unique gripper bar running open system
Automatic Punching Pressure Adjustment System ( Stable punching pressure, less sheet dust, improvement on knife durability )
Power lock on chase & cutting plate

Maximum Sheet Speed ( sheets / hour )	9,000
Maximum Sheet Size ( mm )	1060X740
Minimum Sheet Size (mm )	400X330
Sheet Thickness (mm )	0.1〜1.5※1
Maximum Punching Pressure ( ton )	300
Power (kW )	23.6

Specification and equipment are subject to change without notice.
