Feature

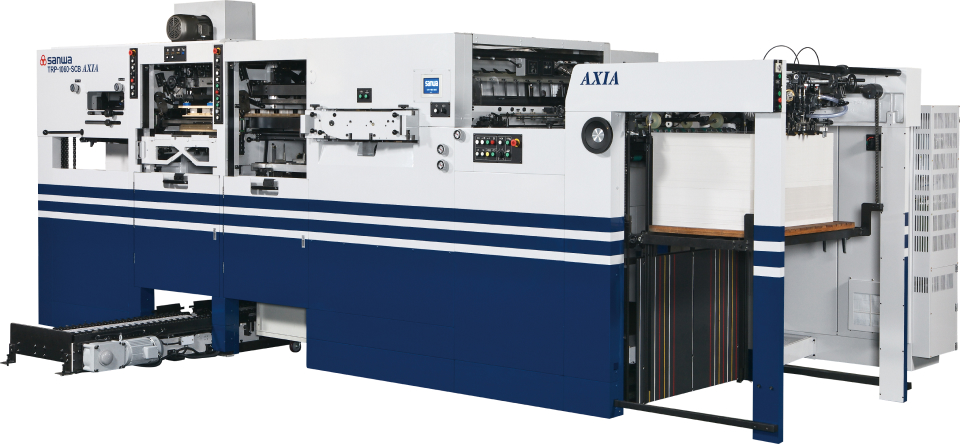

This is a machine equipped with “ BLANKING system “ on our AXIA series.
The concepts are productivity, product quality and easy operation.
- Delivery sheet pile enables our customers to make a blanking job as well as single die cutting job and stripping job with a simple adjustment on this machine.
- Reduction of machine stop time drastically in inserting a tie sheet ( sheet inserter ) and changing a blanking pallet. 45% reduction compare to our previous blanking machine TRP-1060-SCB.
- Blanking quick lock system with micro adjustment to fix the wooden tools
- Power lock on chase & cutting plate
- High speed performance with gentle sheet delivery system
- Improvement on delivery sheet pile accuracy by our original gripper bar running open system
| Maximum Sheet Speed ( sheets / hour ) | 8,000 |
|---|---|
| Maximum Sheet Size ( mm ) | 1060X740 |
| Minimum Sheet Size (mm ) | 400X330 |
| Sheet Thickness (mm ) | 0.1〜1.5※1 |
| Maximum Punching Pressure ( ton ) | 300 |
| Power (kW ) | 30.1 |
Specification and equipment are subject to change without notice.
