1060  series

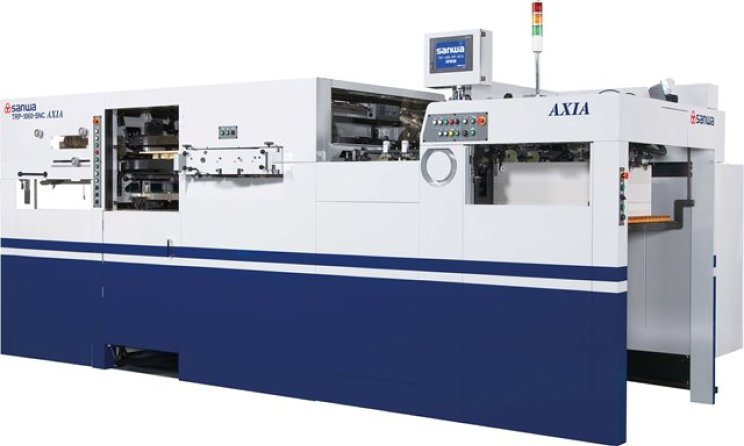

TRP-1060-SNC AXIA

Feature

We realized improvement on productivity & further efficiency on operation on this machine with production management functions based on our machine TRP-1060-SV AXIA.

  • Facilitating operation and reducing pre-makeready time by equipping 20 automatic pre-set functions
  • Data memory such as production schedule, operation result, and etc
  • Internal teaching function to memorize input data ( up to 50,000 orders )
  • Easy operation by a large interactive type touch screen monitor and independent SNC operation board
  • Power lock on chase & cutting plate
  • High speed performance with gentle sheet delivery system
  • Improvement on delivery sheet pile accuracy by our original gripper bar running open system
Maximum Sheet Speed ( sheets / hour )8,000
Maximum Sheet Size ( mm )1060X740
Minimum Sheet Size (mm )400X330
Sheet Thickness (mm )0.1〜1.5※1
Maximum Punching Pressure ( ton )300
Power (kW )23.6

Specification and equipment are subject to change without notice.
