1060  series

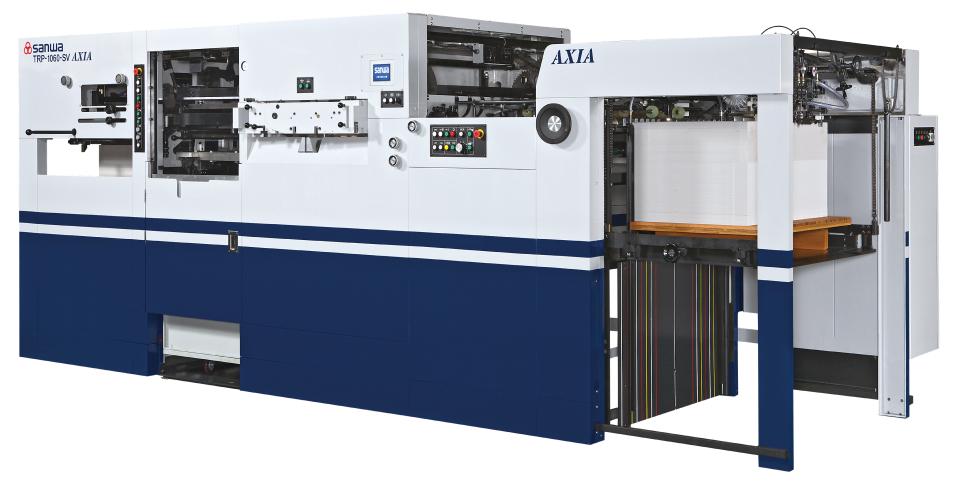

TRP-1060-SV AXIA

Feature

We reduced pre-makeready time and operators’ workload by enhancing automation on this machine as a upper machine of TRP-1060-SE AXIA.

  • Automatic Punching Pressure Adjustment System for the first time in this industry ( stable punching pressure, less sheet dust, improvement on knife durability )
  • Power lock on chase & cutting plate
  • High speed performance with gentle sheet delivery system
  • Improvement on delivery sheet pile accuracy by our original gripper bar running open system
Maximum Sheet Speed ( sheets / hour )8,000
Maximum Sheet Size ( mm )1060X740
Minimum Sheet Size (mm )400X330
Sheet Thickness (mm )0.1〜1.5※1
Maximum Punching Pressure ( ton )300
Power (kW )23.6

Specification and equipment are subject to change without notice.
