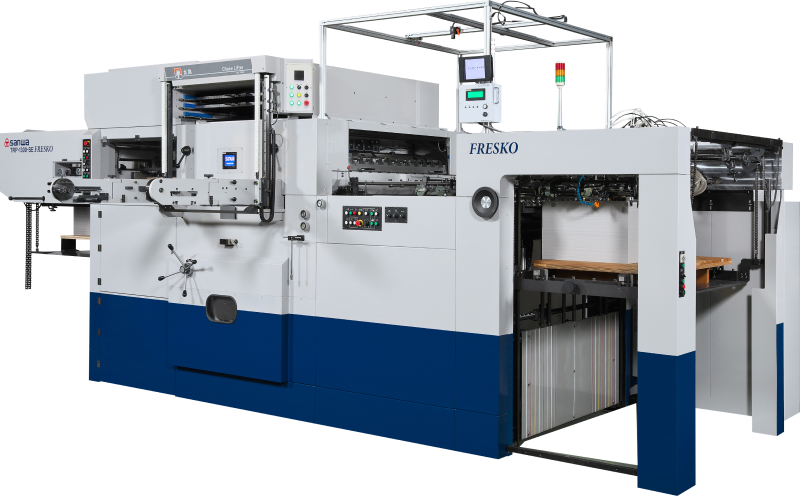

Feature

We realized a wide sheet size production in the range from 1300 size with many products on a sheet to 639 ㎜ x 479㎜.

Minimizing bad sheet dancing and imbalanced load in the platen unit by cam toggle system
Improvement on delivery sheet pile accuracy by our original gripper bar running open system.
A range of the sheet size between maximum sheet size and minimum sheet size is wide.
Realized a better high efficiency by about 30% than conventional machine to run a light weight tricky sheet

Maximum Sheet Speed ( sheets / hour )	6,500
Maximum Sheet Size ( mm )	1,300X950
Minimum Sheet Size (mm )	550X450
Sheet Thickness (mm )	0.1〜2.0※1
Maximum Punching Pressure ( ton )	350
Power (kW )	35.75

Specification and equipment are subject to change without notice.
