1060  series

TRP-1060-SVB EXSELI

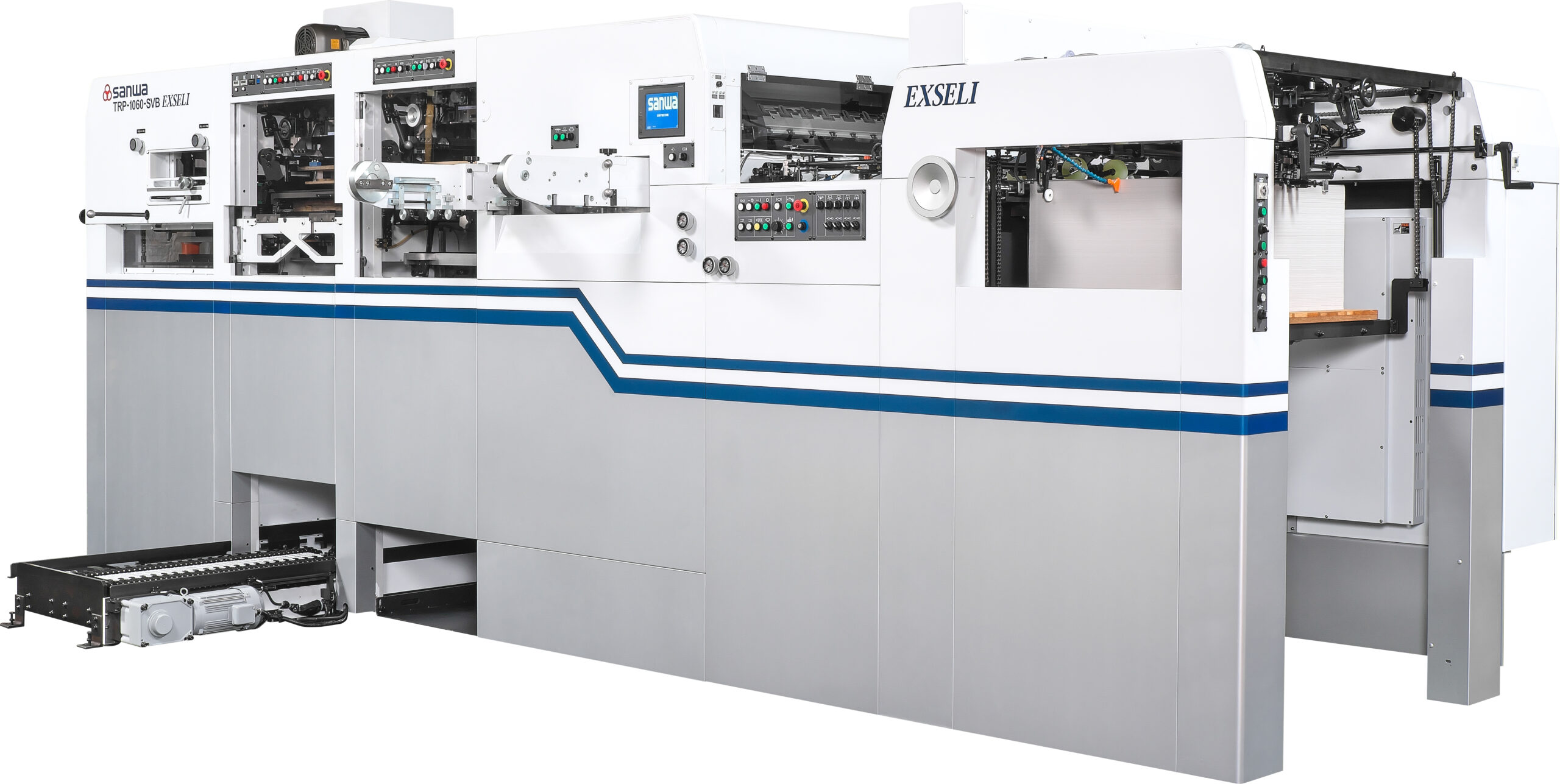

TRP-1060-SVB EXSELI 全体写真

Feature

We proudly announce the release of TRP-1060-SVB EXSELI, which integrates brilliant blanking system into the famed SV EXSELI.

With the EXSELI-exclusive incredible 9,000 sph operation speed, TRP-1060-SVB EXSELI achieves the next level work efficiency.

  • Stable sheet delivery by “EXSELI“ original index system.
  • High speed operation by a new development on our unique gripper bar running open system.
  • Standard automatic punching pressure adjustment system ( Stable punching pressure, less sheet dust, improvement on knife durability ).
  • Easy one-touch operation to change between a blanking job and a die-cutting with stripping job.
  • Drastic reduction of a machine stop time during inserting a tie sheet ( sheet inserter ) and changing a blanking pallet. 45% reduction compare to our previous blanking machine TRP-1060-SCB.
  • Blanking quick lock system with micro adjustment to fix the wooden tools.
  • Power lock on chase & cutting plate.
Maximum Sheet Speed ( sheets / hour )9,000
Maximum Sheet Size ( mm )1060X740
Minimum Sheet Size (mm )400X330
Sheet Thickness (mm )0.1〜1.5※1
Maximum Punching Pressure ( ton )300
Power (kW )27.0

Specification and equipment are subject to change without notice.
